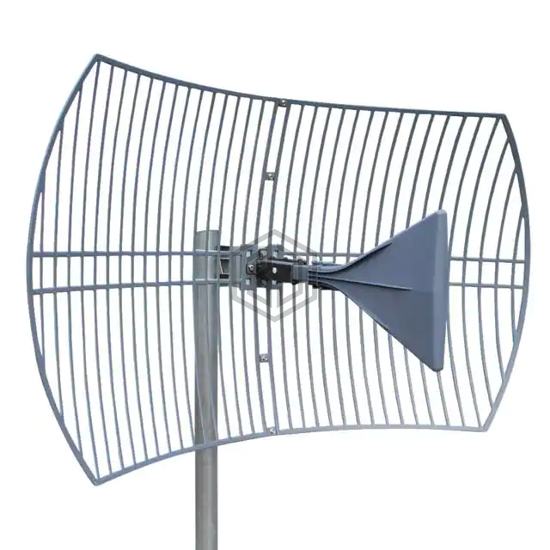

ANTENNA PARABOLIC 600-6500MHZ
RGP-MBF4-6099-17F-TA-001 is a RF Antennas manufactured by Raltron Electronics. ANTENNA PARABOLIC 600-6500MHZ. Key specifications: mounting type Pole Mount, termination N Type Female, ingress protection IP65, power - max 100 W.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz,859MHz,920MHz,1.45GHz,1.575GHz,1.585GHz,1.785GHz,1.92GHz,2.045GHz,2.4GHz,2.495GHz,2.6GHz,3.4GHz,3.55GHz,3.9GHz,5.375GHz,5.45GHz,5.5GHz,5.8GHz,5.8875GHz |
| Frequency Range | 600MHz ~ 6.5GHz |
| Antenna Type | Parabolic Grid |
| Number of Bands | 20 |
| VSWR | 1.4, 1.6 |
| Return Loss | 10dB, 20dB |
| Gain | 15dBi, 20dBi, 25dBi |
| Power - Max | 100 W |
| Features | - |
| Termination | N Type Female |
| Ingress Protection | IP65 |
| Mounting Type | Pole Mount |
| Height (Max) | 24.000" (609.60mm) |
| Applications | 2G, 3G, 4G, 5G, Cellular, LTE, GSM, WiFi, GNSS, GPS, Beidou, Glonass, Galileo, IMS, LoRa, Sigfox, Zigbee, WCDMA, GPRS, IoT |
Submit your RFQ for RGP-MBF4-6099-17F-TA-001 and get a quote within 24 hours.
