2X OMNI LTE + WI-FI DUAL BAND +

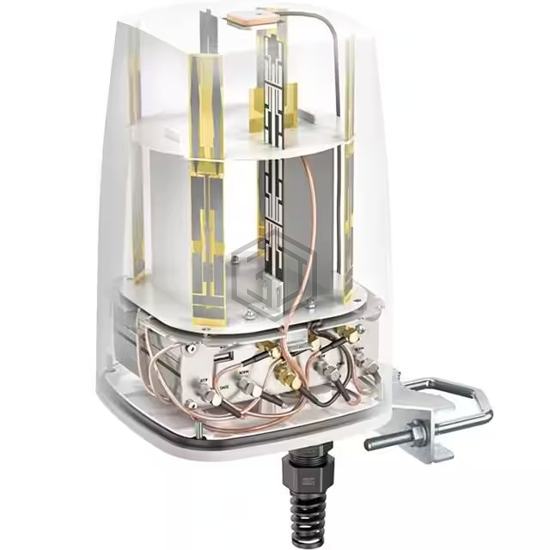

AX12S is a RF Antennas manufactured by QuWireless. 2X OMNI LTE + WI-FI DUAL BAND +. Key specifications: mounting type Bracket Mount, termination RJ45, ingress protection IP67, frequency range 1.7GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 4.7GHz ~ 6GHz.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 827MHz, 1.95GHz, 2.45GHz, 2.45GHz, 2.6GHz, 5.35GHz |
| Frequency Range | 1.7GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 4.7GHz ~ 6GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | 2, 2.5 |
| Return Loss | - |
| Gain | 2dBi, 2dBi, 3dBi, 6dBi, 2dBi, 7dBi |
| Power - Max | - |
| Features | - |
| Termination | RJ45 |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Height (Max) | 9.449" (240.00mm) |
| Applications | Bluetooth, GPS, LTE, Wi-Fi |
Submit your RFQ for AX12S and get a quote within 24 hours.
