1206 PACKAGE, REVERSE MOUNT, BI

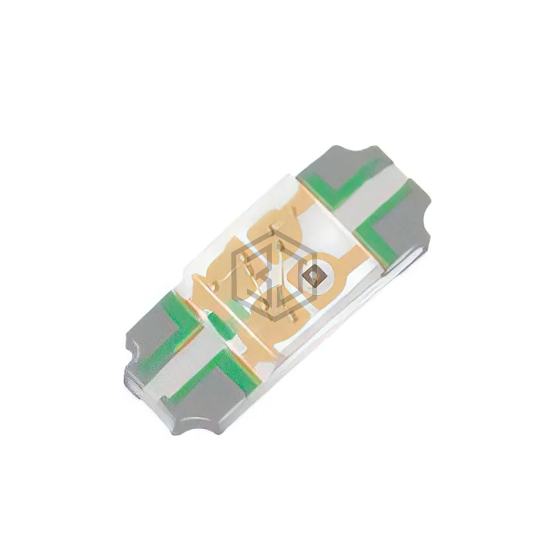

QLSP15RNB is a LED Indication - Discrete manufactured by Quelighting Corp. 1206 PACKAGE, REVERSE MOUNT, BI. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 3.15V Blue, 2.15V Red, package / case 4-SMD, No Lead, color Blue, Red.
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Red |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 130mcd Blue, 120mcd Red |
| Lens Style | Square with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 3.15V Blue, 2.15V Red |
| Current - Test | 20mA Blue, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 472nm Blue, 624nm Red |
| Wavelength - Peak | 470nm Blue, 632nm Red |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 1.25mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for QLSP15RNB and get a quote within 24 hours.
