1206 PACKAGE, REVERSE MOUNT, RGB

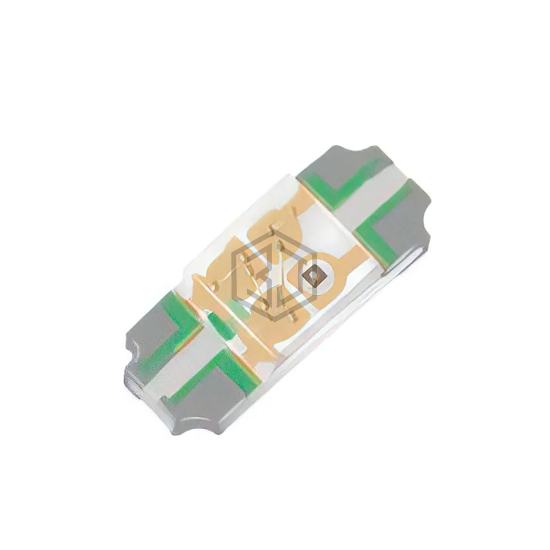

QLSP15RGB is a LED Indication - Discrete manufactured by Quelighting Corp. 1206 PACKAGE, REVERSE MOUNT, RGB. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 2.15V Red, 3.1V Green, 3.1V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 180mcd Red, 600mcd Green, 130mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.15V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 624nm Red, 525nm Green, 472nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 470nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 1.25mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for QLSP15RGB and get a quote within 24 hours.
