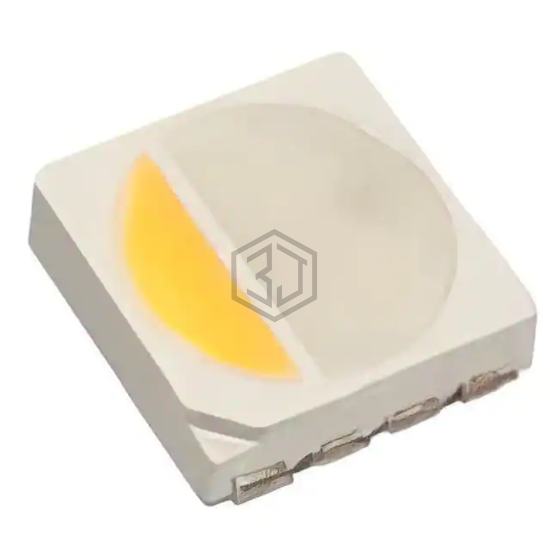

5050 PACKAGE LED, TOP VIEW, RGBW
QLSP08RGBW is a LED Indication - Discrete manufactured by Quelighting Corp. 5050 PACKAGE LED, TOP VIEW, RGBW. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Red, 3.2V Green, 3.2V Blue, 3.2V White, package / case 2020 (5050 Metric), color Red, Green, Blue, White (RGBW).
In Stock: 1,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue, White (RGBW) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 700mcd Red, 1500mcd Green, 500mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 4.60mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.2V Blue, 3.2V White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue, 60mA White |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 623nm Red, 525nm Green, 467nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | 5050 |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Height (Max) | 1.70mm |
Submit your RFQ for QLSP08RGBW and get a quote within 24 hours.
