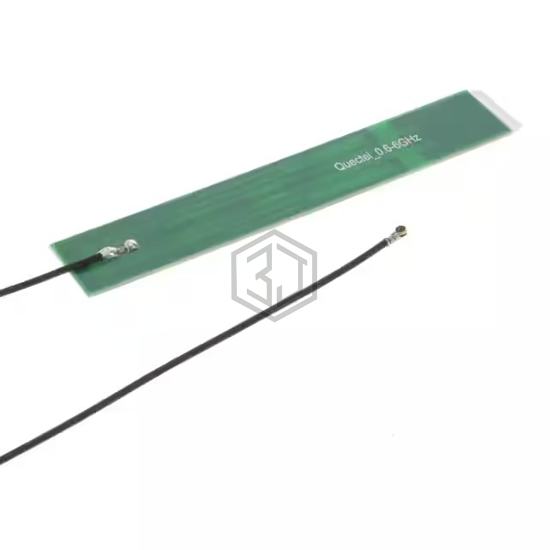

EMBEDDED CELLULAR ANTENNA
YP0009CA is a RF Antennas manufactured by Quectel. EMBEDDED CELLULAR ANTENNA. Key specifications: mounting type Adhesive, termination IPEX MHF4, frequency range 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz.
In Stock: 718
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 8 |
| VSWR | 1.96, 2.1, 2.19, 2.2, 2.31, 4.5 |
| Return Loss | - |
| Gain | 0.51dBi, 2.4dBi, 4.5dBi, 3.8dBi, 3.9dBi, 2.3dBi |
| Power - Max | - |
| Features | Cable - 188.5mm |
| Termination | IPEX MHF4 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.037" (0.95mm) |
| Applications | 6G |
Submit your RFQ for YP0009CA and get a quote within 24 hours.
