EMBEDDED CELLULAR ANTENNA

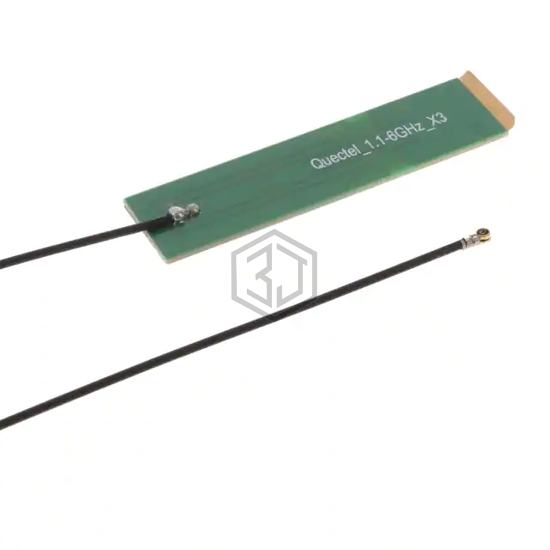

YP0009BA is a RF Antennas manufactured by Quectel. EMBEDDED CELLULAR ANTENNA. Key specifications: mounting type Adhesive, termination IPEX MHF4, frequency range 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz.
In Stock: 990
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 8 |
| VSWR | 1.1, 1.6, 1.7, 1.8, 2, 2.5, 2.77 |
| Return Loss | - |
| Gain | 1.2dBi, 3.3dBi, 3.3dBi, 3.9dBi, 4.5dBi, 4.67dBi, 4.6dBi |
| Power - Max | - |
| Features | Cable - 193mm |
| Termination | IPEX MHF4 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.037" (0.95mm) |
| Applications | 6G |
