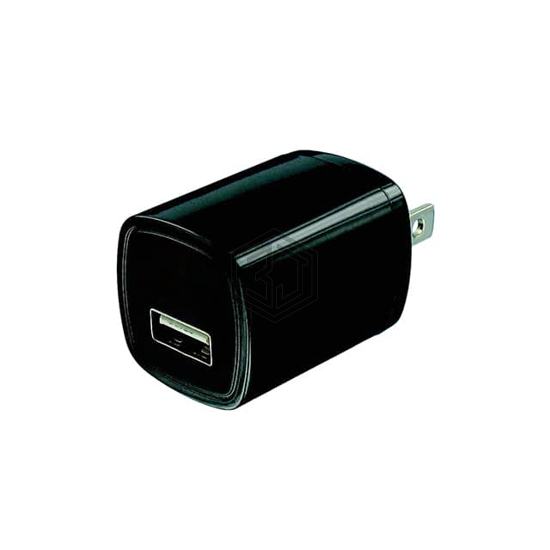

AC/DC WALL MOUNT ADAPTER 5V 5W
QFAW-05-05 is a AC DC Desktop, Wall Adapters manufactured by Qualtek. AC/DC WALL MOUNT ADAPTER 5V 5W. Key specifications: operating temperature -20°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 1A, size / dimension 1.18" L x 1.18" W x 1.52" H (30.0mm x 30.0mm x 38.6mm).
In Stock: 319
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V |
| Current - Output (Max) | 1A |
| Power (Watts) | 5 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -20°C ~ 40°C |
| Output Connector | USB A Receptacle |
| Cord Length | - |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 1.18" L x 1.18" W x 1.52" H (30.0mm x 30.0mm x 38.6mm) |
| Approval Agency | cULus, FCC |
| Standard Number | - |
Submit your RFQ for QFAW-05-05 and get a quote within 24 hours.
