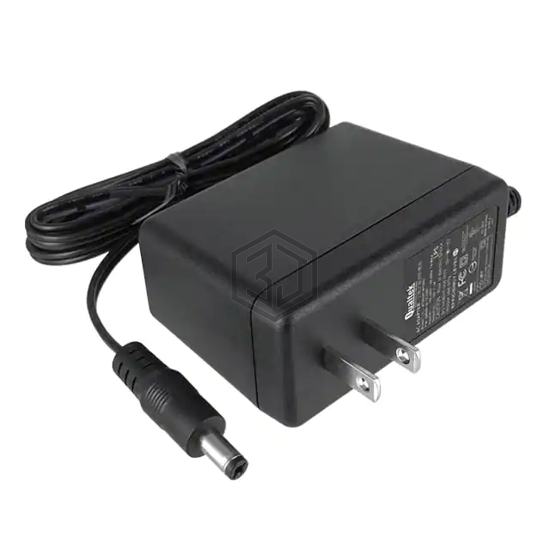

AC/DC WALL MOUNT ADAPTER 12V 36W
QAWA-36-12-US01 is a AC DC Desktop, Wall Adapters manufactured by Qualtek. AC/DC WALL MOUNT ADAPTER 12V 36W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 100 ~ 240 VAC, current - output (max) 3A, size / dimension 3.11" L x 1.34" W x 2.91" H (79.0mm x 34.0mm x 74.0mm).
In Stock: 280
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 3A |
| Power (Watts) | 36 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 59" (1.50m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 3.11" L x 1.34" W x 2.91" H (79.0mm x 34.0mm x 74.0mm) |
| Approval Agency | BSMI, CB, CCC, CE, cULus, FCC, GS, PSE, RCM |
| Standard Number | - |
Submit your RFQ for QAWA-36-12-US01 and get a quote within 24 hours.
