HALF PITCH MINI-FLAT PACKAGE PHO

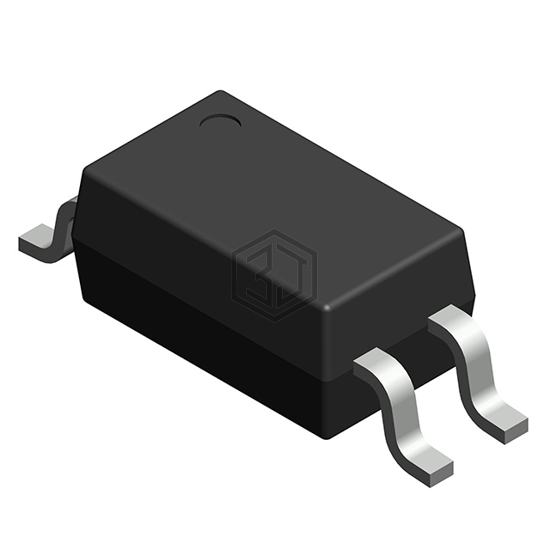

QTH214T1 is a Optoisolators - Transistor, Photovoltaic Output manufactured by QT Brightek (QTB). HALF PITCH MINI-FLAT PACKAGE PHO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.24V, package / case 4-SOIC (0.173", 4.40mm Width).
In Stock: 11,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 20% @ 1mA |
| Current Transfer Ratio (Max) | 300% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 6µs, 8µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-Mini-Flat |
Submit your RFQ for QTH214T1 and get a quote within 24 hours.
