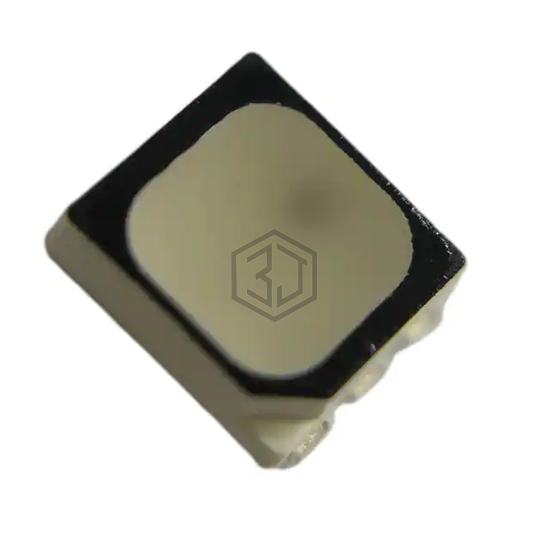

LED RGB DIFFUSED 6PLCC SMD
QBLP680-RGB1 is a LED Indication - Discrete manufactured by QT Brightek (QTB). LED RGB DIFFUSED 6PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.9V Green, 3V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 8,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 900mcd Red, 2300mcd Green, 350mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.9V Green, 3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 620nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 1.80mm |
Submit your RFQ for QBLP680-RGB1 and get a quote within 24 hours.
