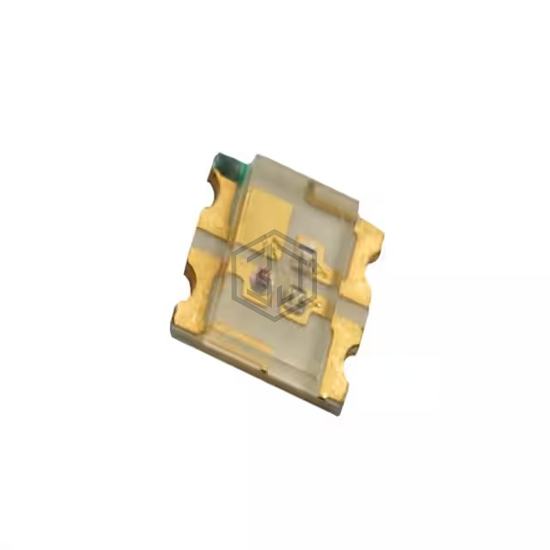

LED RED/YLW-GRN CLEAR 0805 SMD
QBLP631-RAG is a LED Indication - Discrete manufactured by QT Brightek (QTB). LED RED/YLW-GRN CLEAR 0805 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2V Yellow-Green, package / case 0805 (2012 Metric), color Red, Yellow-Green.
In Stock: 4,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 70mcd Red, 40mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2V Yellow-Green |
| Current - Test | 20mA Red, 20mA Yellow-Green |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm Red, 570nm Yellow-Green |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 0.80mm |
Submit your RFQ for QBLP631-RAG and get a quote within 24 hours.
