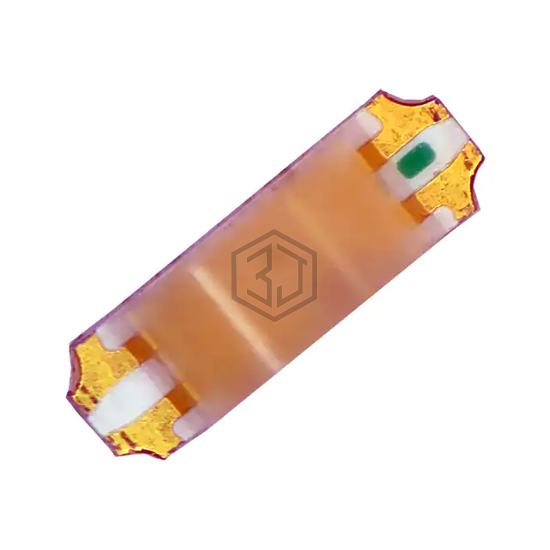

LED RGB CLEAR 1206 SMD R/A
QBLP615-RGB-2943 is a LED Indication - Discrete manufactured by QT Brightek (QTB). LED RGB CLEAR 1206 SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2V Red, 3.1V Green, 3.1V Blue, package / case 1206 (3216 Metric), color Red, Green, Blue (RGB).
In Stock: 7,255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 190mcd Red, 620mcd Green, 110mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 620nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.30mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for QBLP615-RGB-2943 and get a quote within 24 hours.
