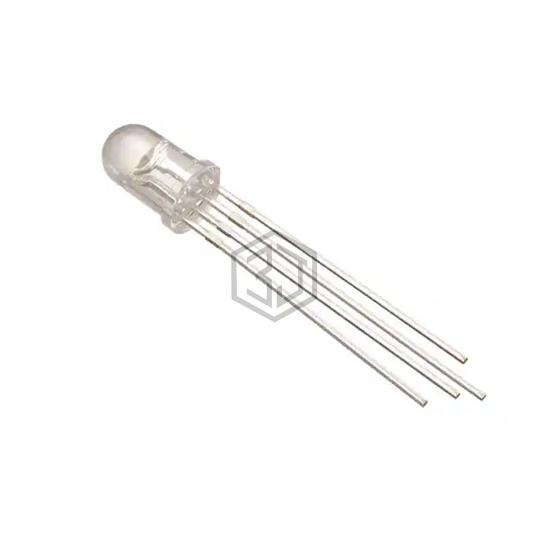

LED RGB DIFFUSED T-1 3/4 T/H
QBL8RGB60D0-2897 is a LED Indication - Discrete manufactured by QT Brightek (QTB). LED RGB DIFFUSED T-1 3/4 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case Radial, color Red, Green, Blue (RGB).
In Stock: 108,050
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 1300mcd Red, 2200mcd Green, 800mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Size / Dimension | 4.90mm Dia |
| Height (Max) | 8.85mm |
Submit your RFQ for QBL8RGB60D0-2897 and get a quote within 24 hours.
