LED RGB 620NM/525NM/465NM 6PLCC

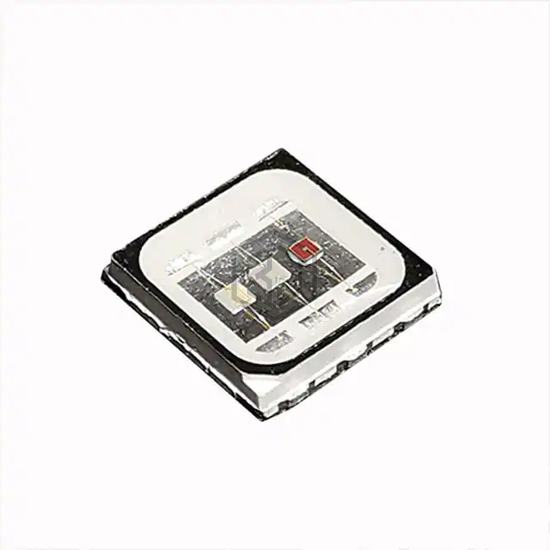

QBHP688-RGB3H is a LED Lighting - Color manufactured by QT Brightek (QTB). LED RGB 620NM/525NM/465NM 6PLCC. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.4V Red, 3.5V Green, 3.1V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 5,547
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 620nm Red, 525nm Green, 465nm Blue |
| Current - Test | 150mA Red, 150mA Green, 150mA Blue |
| Voltage - Forward (Vf) (Typ) | 2.4V Red, 3.5V Green, 3.1V Blue |
| Lumens/Watt @ Current - Test | 36 lm/W Red, 53 lm/W Green, 17 lm/W Blue |
| Current - Max | 160mA Red, 160mA Green, 160mA Blue |
| Luminous Flux @ Current/Temperature | 13lm Red, 28lm Green, 8lm Blue |
| Temperature - Test | 25°C |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for QBHP688-RGB3H and get a quote within 24 hours.
