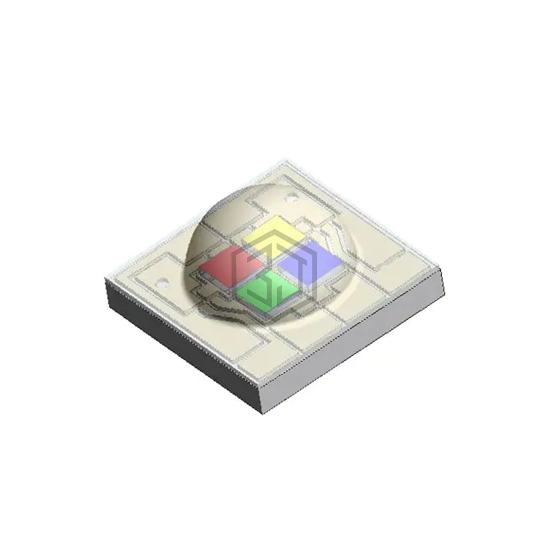

LED RGBW 630NM/520NM/460NM 1414
QBHP684-RGBCWBU is a LED Lighting - Color manufactured by QT Brightek (QTB). LED RGBW 630NM/520NM/460NM 1414. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.4V Red, 3.2V Green, 3.2V Blue, 3.2V White, package / case 1414 (3535 Metric), color Red, Green, Blue, White (RGBW).
In Stock: 8,871
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue, White (RGBW) |
| Wavelength | 630nm Red, 520nm Green, 460nm Blue |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Voltage - Forward (Vf) (Typ) | 2.4V Red, 3.2V Green, 3.2V Blue, 3.2V White |
| Lumens/Watt @ Current - Test | 42 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 179 lm/W White |
| Current - Max | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Luminous Flux @ Current/Temperature | 35lm Red, 75lm Green, 15lm Blue, 200lm Blue |
| Temperature - Test | 25°C |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 1414 (3535 Metric) |
| Supplier Device Package | 1414 |
| Size / Dimension | 0.136" L x 0.136" W (3.45mm x 3.45mm) |
| Height - Seated (Max) | 0.081" (2.05mm) |
Submit your RFQ for QBHP684-RGBCWBU and get a quote within 24 hours.
