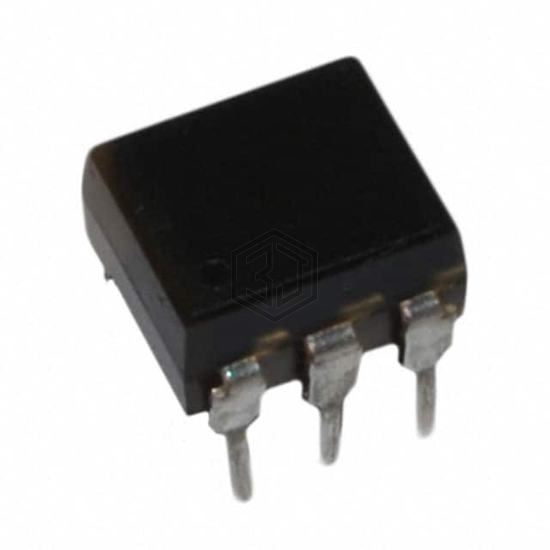

OPTOISOLATOR 5KV TRIAC 6DIP
Q3022 is a Optoisolators - Triac, SCR Output manufactured by QT Brightek (QTB). OPTOISOLATOR 5KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.18V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 9,084
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | 100V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) | 250µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | UR, VDE |
Submit your RFQ for Q3022 and get a quote within 24 hours.
