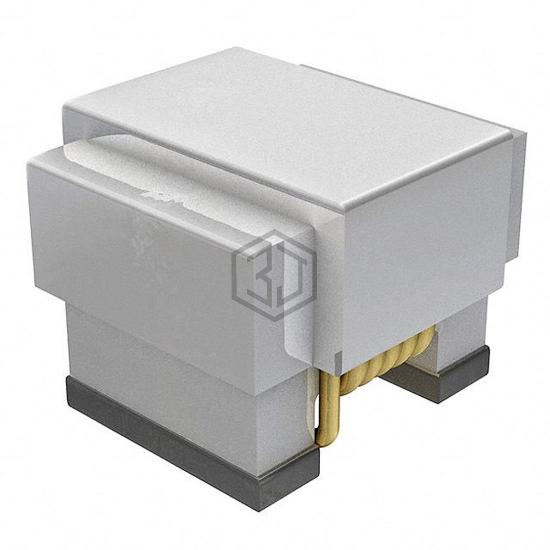

FIXED IND 149.4NH 400MA 560 MOHM
PE-0805CD151GTT is a Fixed Inductors manufactured by Pulse Electronics Network. FIXED IND 149.4NH 400MA 560 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 400 mA.
In Stock: 3,730
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 149.4 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 560mOhm Max |
| Q @ Freq | 50 @ 250MHz |
| Frequency - Self Resonant | 920MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Height - Seated (Max) | 0.062" (1.58mm) |
Submit your RFQ for PE-0805CD151GTT and get a quote within 24 hours.
