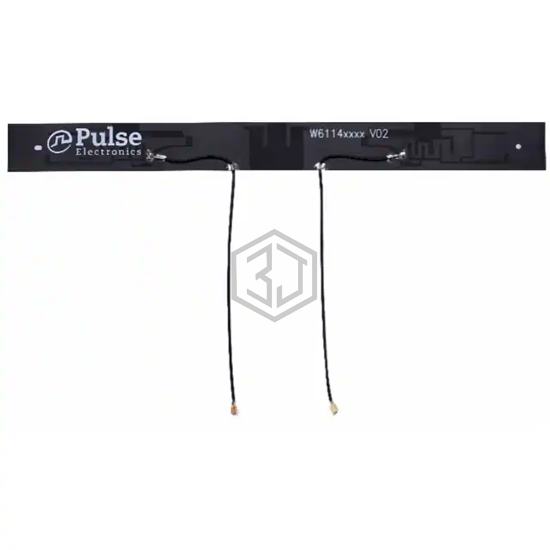

ANTENNA FLEX FPC 5G 617-7125 MHZ
W6114B0100 is a RF Antennas manufactured by PulseLarsen Antennas. ANTENNA FLEX FPC 5G 617-7125 MHZ. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF, power - max 3 W, frequency range 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz.
In Stock: 1,972
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 2.0585GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.5625GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | -5dB, -6dB, -5dB, -6dB, -5dB, -4dB |
| Gain | 1.5dBi, 3.8dBi, 4.6dBi, 5.8dBi, 5dBi, 4.8dBi |
| Power - Max | 3 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.006" (0.15mm) |
| Applications | 4G, 5G |
Submit your RFQ for W6114B0100 and get a quote within 24 hours.
