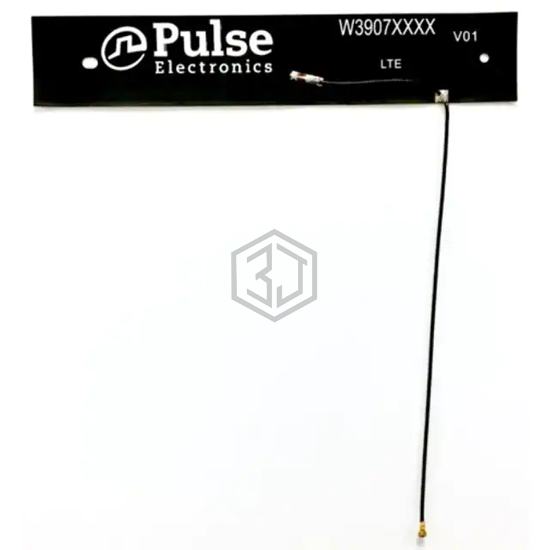

LTE DIVERSITY FPC ANTENNA
W3907B0127 is a RF Antennas manufactured by PulseLarsen Antennas. LTE DIVERSITY FPC ANTENNA. Key specifications: mounting type Surface Mount, termination IPEX MHF, power - max 3 W, frequency range 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz.
In Stock: 1,723
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | -6dB, -7.5dB |
| Gain | 2.9dBi, 1.7dBi, 1.8dBi, 3.4dBi, 3.8dBi, 4.2dBi |
| Power - Max | 3 W |
| Features | Cable - 127mm |
| Termination | IPEX MHF |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | - |
| Applications | 2G, 3G, 4G, LTE |
Submit your RFQ for W3907B0127 and get a quote within 24 hours.
