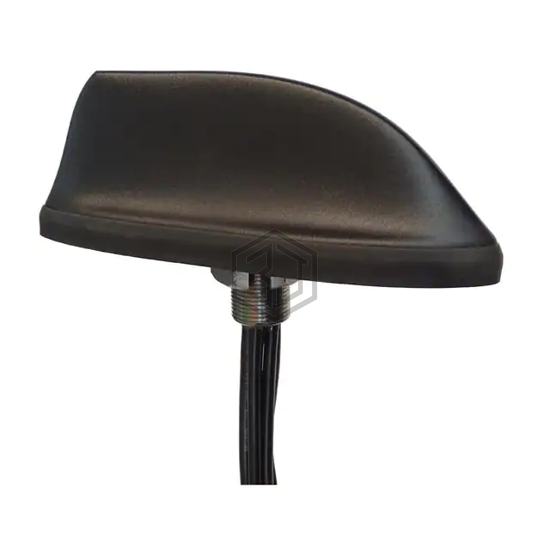

ANTENNA SHARK FIN 5G WIFI 6E
SKF5G62311DM is a RF Antennas manufactured by PulseLarsen Antennas. ANTENNA SHARK FIN 5G WIFI 6E. Key specifications: mounting type Direct Mount, termination RP-SMA Male (1), SMA Male (2), ingress protection IP67, power - max 45 W.
In Stock: 5,562
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.205GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.0125GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.2266GHz ~ 1.2286GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 4.9GHz ~ 7.125GHz |
| Antenna Type | Module |
| Number of Bands | 11 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 2.3dBi, 4.6dBi, 6dBi, 4.9dBi, 5.7dBi, 5.4dBi, 4.7dBi |
| Power - Max | 45 W |
| Features | Cable - 5.18m, LNA |
| Termination | RP-SMA Male (1), SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Direct Mount |
| Height (Max) | 2.441" (62.00mm) |
| Applications | 5G, GNSS, LTE, Wi-Fi |
