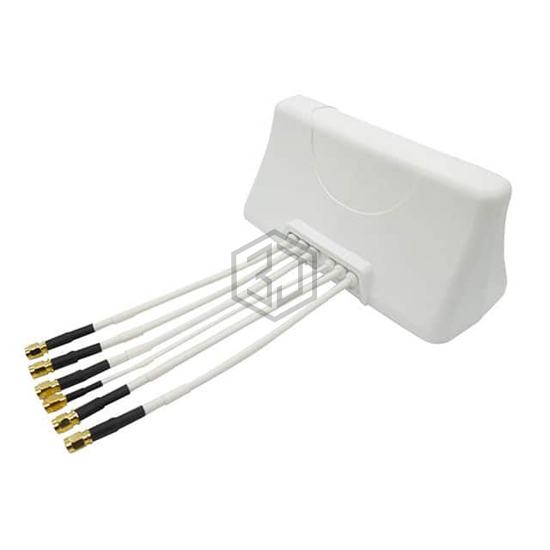

RF ANT 802MHZ/1.582GHZ MOD ADH
RAZ62312AM is a RF Antennas manufactured by PulseLarsen Antennas. RF ANT 802MHZ/1.582GHZ MOD ADH. Key specifications: mounting type Adhesive, termination SMA Male (3), RP-SMA Male (3), ingress protection IP67, power - max 45 W.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz |
| Frequency Range | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi |
| Power - Max | 45 W |
| Features | Cable - 5.18m, LNA |
| Termination | SMA Male (3), RP-SMA Male (3) |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 3.644" (92.55mm) |
| Applications | Beidou, DSRC, Galileo, GLONASS, GPS, LTE, Wi-Fi |
