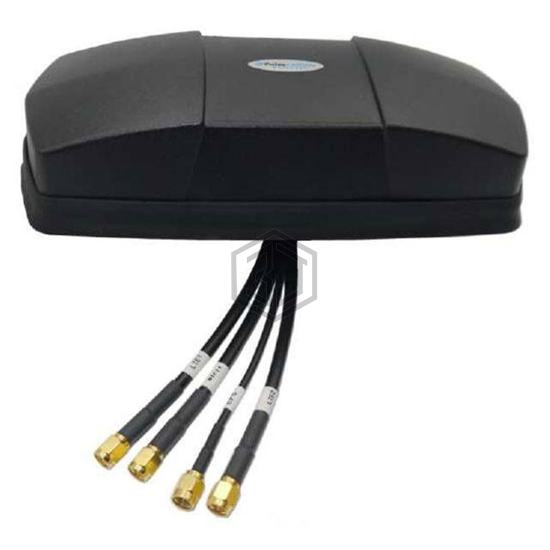

RF ANT 829MHZ/1.582GHZ MOD PANEL
ARM42111DM is a RF Antennas manufactured by PulseLarsen Antennas. RF ANT 829MHZ/1.582GHZ MOD PANEL. Key specifications: mounting type Panel Mount, termination SMA Male (3), RP-SMA Male (1), ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Module |
| Number of Bands | 4 |
| VSWR | 2, 2.5 |
| Return Loss | - |
| Gain | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi |
| Power - Max | - |
| Features | Cable - 5.18m, LNA |
| Termination | SMA Male (3), RP-SMA Male (1) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.772" (45.00mm) |
| Applications | GPS, LTE, Wi-Fi |
Submit your RFQ for ARM42111DM and get a quote within 24 hours.
