FIXED IND 4.2UH 27A 4.68MOHM SMD

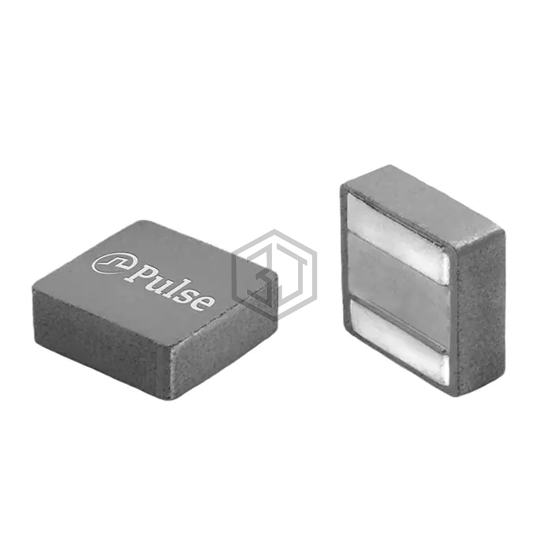

PM5433.422NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 4.2UH 27A 4.68MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 27 A.
In Stock: 394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 27 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.68mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for PM5433.422NLT and get a quote within 24 hours.
