FIXED IND 8.2UH 8A 26.4MOHM SMD

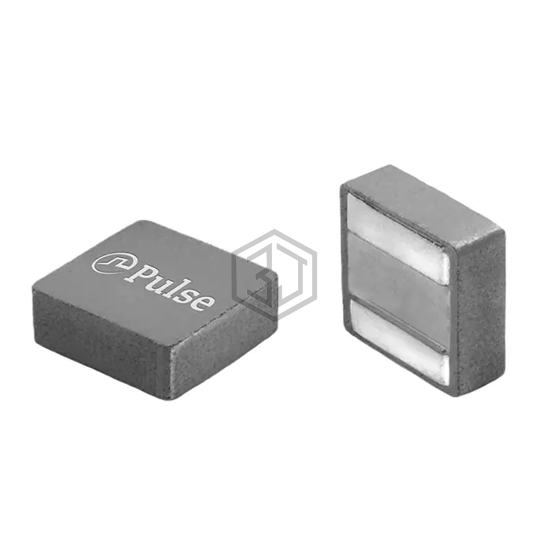

PM5432.822NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 8.2UH 8A 26.4MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 8 A.
In Stock: 1,778
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 26.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.260" W (6.80mm x 6.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for PM5432.822NLT and get a quote within 24 hours.
