FIXED IND 4.7UH 5.1A 44.1MOHM SM

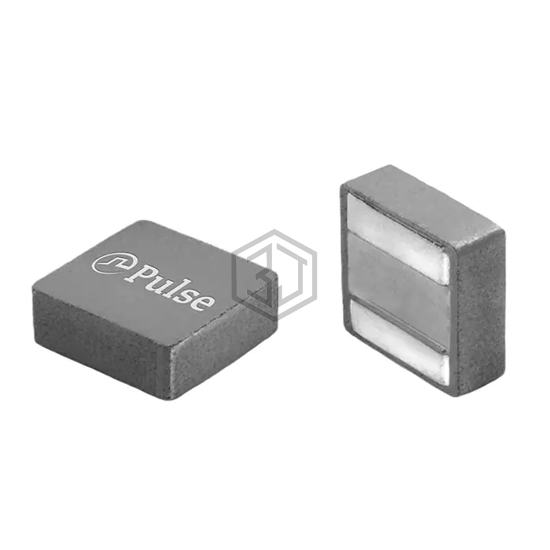

PM5430.472NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 4.7UH 5.1A 44.1MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 5.1 A.
In Stock: 4,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 44.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 36MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for PM5430.472NLT and get a quote within 24 hours.
