FIXED IND 100UH 5.3A 118MOHM SMD

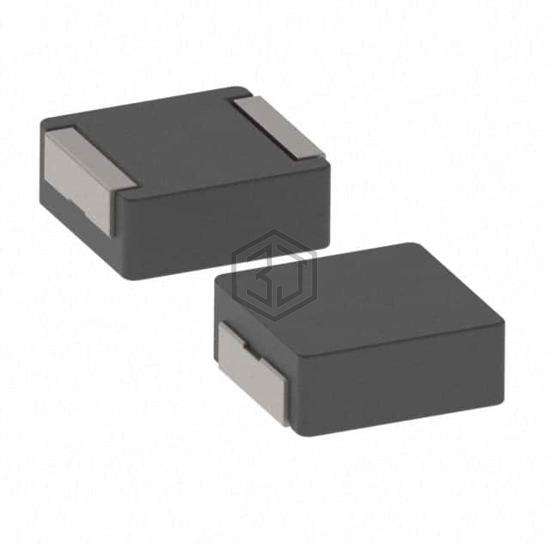

PM4344.104NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 100UH 5.3A 118MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.3 A.
In Stock: 937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.3 A |
| Current - Saturation (Isat) | 6.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 118mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.697" L x 0.677" W (17.70mm x 17.20mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for PM4344.104NLT and get a quote within 24 hours.
