FIXED IND 47UH 6.5A 90 MOHM SMD

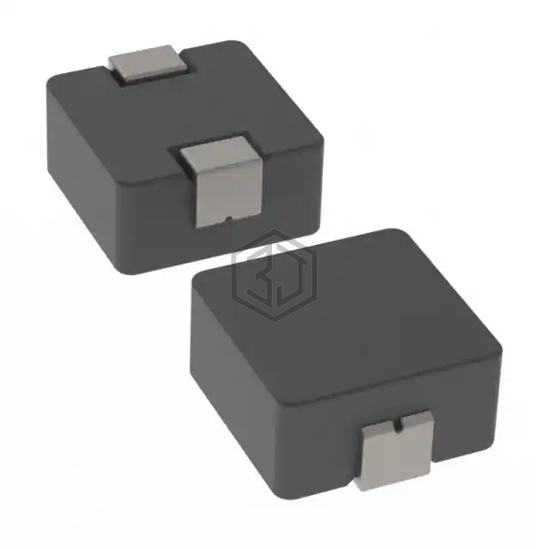

PM4343.473NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 47UH 6.5A 90 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.5 A.
In Stock: 5,155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.551" L x 0.504" W (14.00mm x 12.80mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for PM4343.473NLT and get a quote within 24 hours.
