FIXED IND 560NH 13.9A 9.54 MOHM

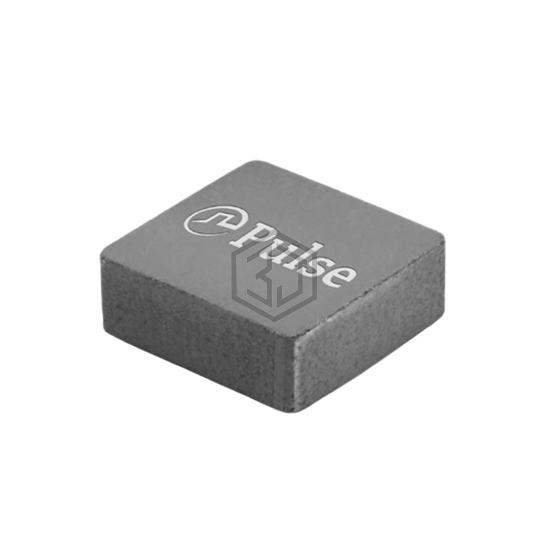

PM2202.561NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 560NH 13.9A 9.54 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 13.9 A.
In Stock: 2,988
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.9 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9.54mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Submit your RFQ for PM2202.561NLT and get a quote within 24 hours.
