TRANSFORMER CURRENT SENSE 200:1

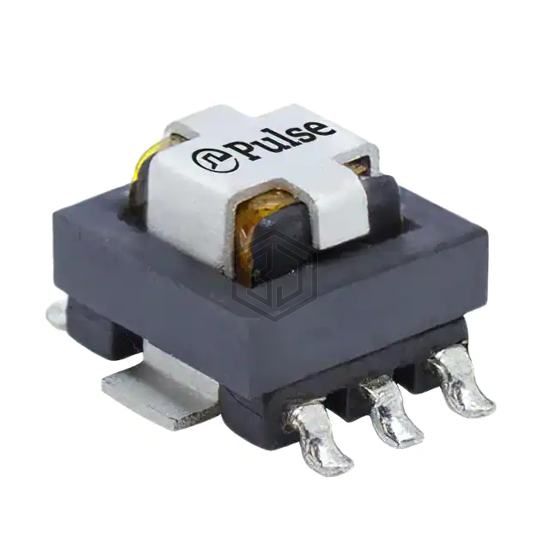

PH9494.200NLT is a Current Sense Transformers manufactured by Pulse Electronics Power. TRANSFORMER CURRENT SENSE 200:1. Key specifications: mounting type Surface Mount, current rating (amps) 30 A, size / dimension 0.504" L x 0.382" W (12.80mm x 9.70mm), termination style Gull Wing.
In Stock: 7,418
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 20kHz |
| Type | Invasive |
| Current Rating (Amps) | 30 A |
| Inductance | 10 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 200:1 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.35mOhm Primary, 10Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.504" L x 0.382" W (12.80mm x 9.70mm) |
| Height - Seated (Max) | 0.283" (7.20mm) |
| Termination Style | Gull Wing |
Submit your RFQ for PH9494.200NLT and get a quote within 24 hours.
