XFMR FLYBACK DC/DC CONV SMD

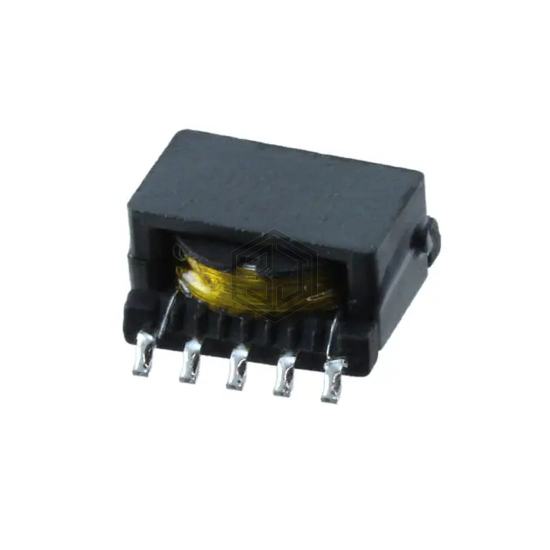

PH9363NLT is a Switching Converter, SMPS Transformers manufactured by Pulse Electronics Power. XFMR FLYBACK DC/DC CONV SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, size / dimension 0.472" L x 0.366" W (12.00mm x 9.30mm), frequency 80kHz.
In Stock: 1,377
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | ACPL-32JT, ACPL-302J |
| Chipset Manufacturer | - |
| Voltage - Primary | 8 ~ 18V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 2500Vrms |
| Inductance @ Frequency | - |
| Frequency | 80kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.472" L x 0.366" W (12.00mm x 9.30mm) |
| Height - Seated (Max) | 0.266" (6.75mm) |
| Footprint | 0.472" L x 0.512" W (12.00mm x 13.00mm) |
| Style | - |
Submit your RFQ for PH9363NLT and get a quote within 24 hours.
