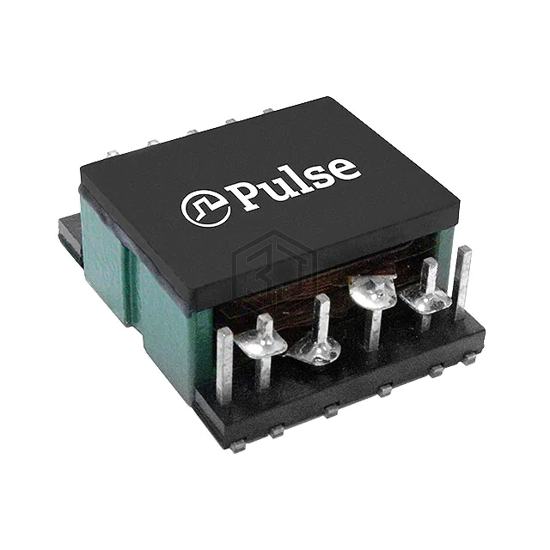

XFMR, ER19 PLANAR, 4:5:1:1, SMT
PH0807CNLT is a Switching Converter, SMPS Transformers manufactured by Pulse Electronics Power. XFMR, ER19 PLANAR, 4:5:1:1, SMT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, size / dimension 0.850" L x 0.970" W (21.59mm x 24.64mm), frequency 200 ~ 700kHz.
In Stock: 2,205
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | - |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | - |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 1500Vrms |
| Inductance @ Frequency | - |
| Frequency | 200 ~ 700kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.850" L x 0.970" W (21.59mm x 24.64mm) |
| Height - Seated (Max) | 0.358" (9.10mm) |
| Footprint | - |
| Style | Planar |
Submit your RFQ for PH0807CNLT and get a quote within 24 hours.
