PULSE XFMR 2.25UH

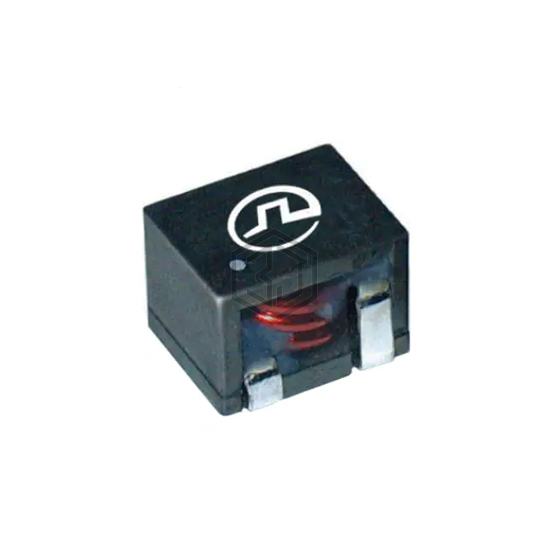

PG1096.252NLT is a Fixed Inductors manufactured by Pulse Electronics Power. PULSE XFMR 2.25UH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 45 A.
In Stock: 467
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.25 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 45 A |
| Current - Saturation (Isat) | 55A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
| Height - Seated (Max) | 0.583" (14.80mm) |
Submit your RFQ for PG1096.252NLT and get a quote within 24 hours.
