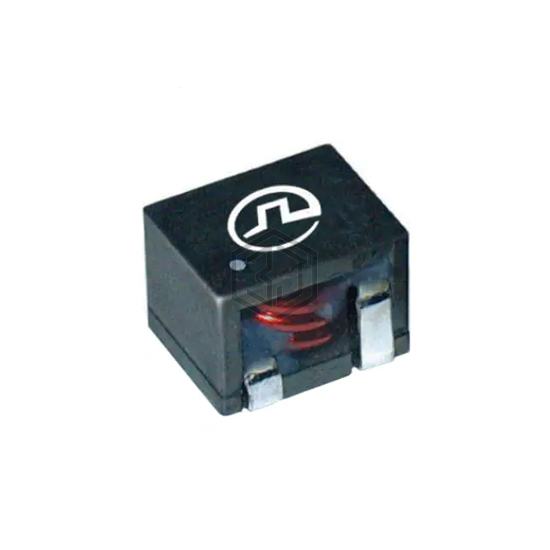

FIXED IND 1.35UH 5A 0.85MOHM SMD
PG1096.152NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1.35UH 5A 0.85MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 50 A.
In Stock: 470
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.35 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 50 A |
| Current - Saturation (Isat) | 65A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.85mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
Submit your RFQ for PG1096.152NLT and get a quote within 24 hours.
