PULSE XFMR 9UH

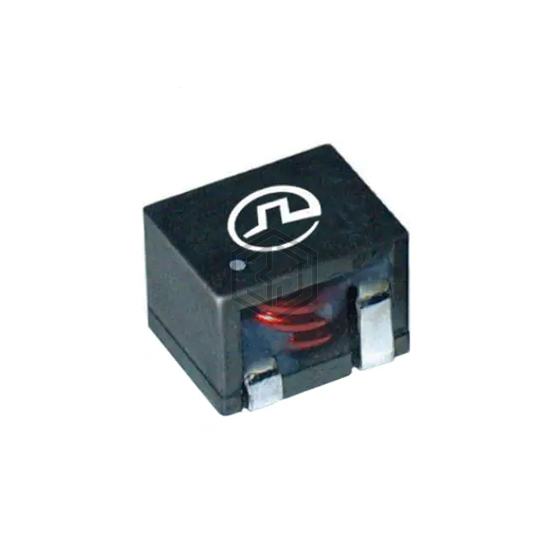

PG1096.103NLT is a Fixed Inductors manufactured by Pulse Electronics Power. PULSE XFMR 9UH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 24.5 A.
In Stock: 530
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 9 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 24.5 A |
| Current - Saturation (Isat) | 28A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
| Height - Seated (Max) | 0.583" (14.80mm) |
