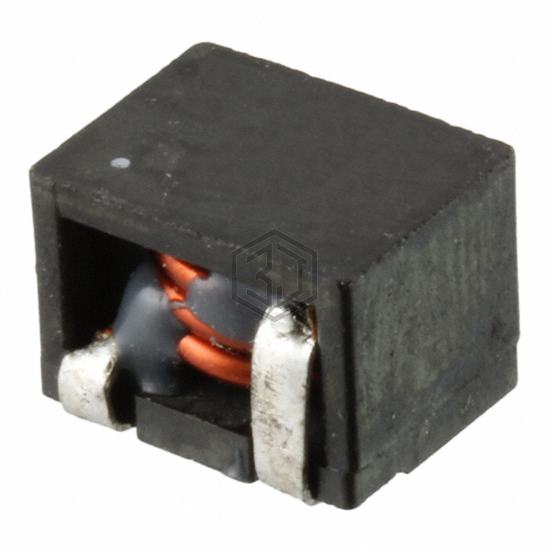

FIXED IND 600NH 32A 0.91MOHM SMD
PG0702.601NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 600NH 32A 0.91MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 32 A.
In Stock: 1,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 600 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | 32A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.91mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.362" W (10.80mm x 9.20mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for PG0702.601NL and get a quote within 24 hours.
