FIXED IND 6.8UH 1.5A 105MOHM SMD

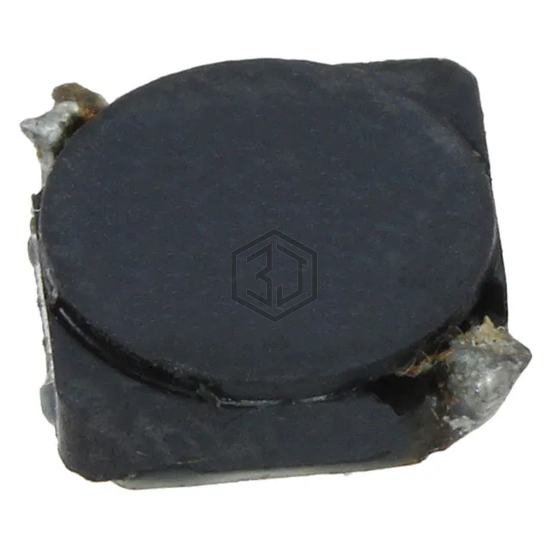

PG0087.682NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 6.8UH 1.5A 105MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 1.5 A.
In Stock: 175
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 105mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 37MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.244" L x 0.244" W (6.20mm x 6.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
