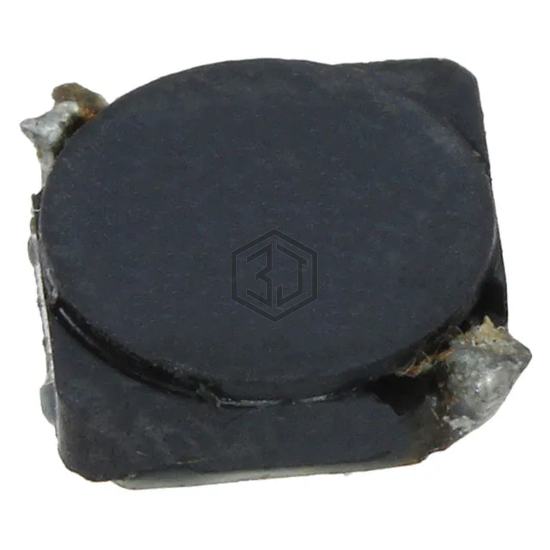

FIXED IND 2.2UH 2.2A 45 MOHM SMD
PG0087.222NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 2.2UH 2.2A 45 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 2.2 A.
In Stock: 145
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | 2.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 45mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.244" L x 0.244" W (6.20mm x 6.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for PG0087.222NL and get a quote within 24 hours.
