FIXED IND 3.3UH 5.8A 27.5MOHM SM

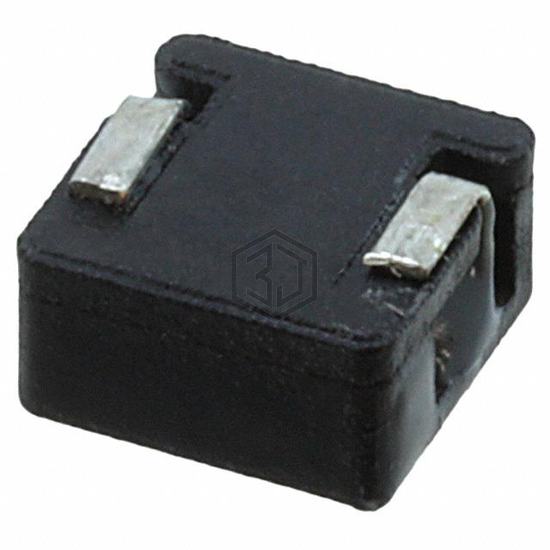

PG0083.332NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 3.3UH 5.8A 27.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C, package / case Nonstandard, current rating (amps) 5.8 A.
In Stock: 99
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 27.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 95°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for PG0083.332NL and get a quote within 24 hours.
