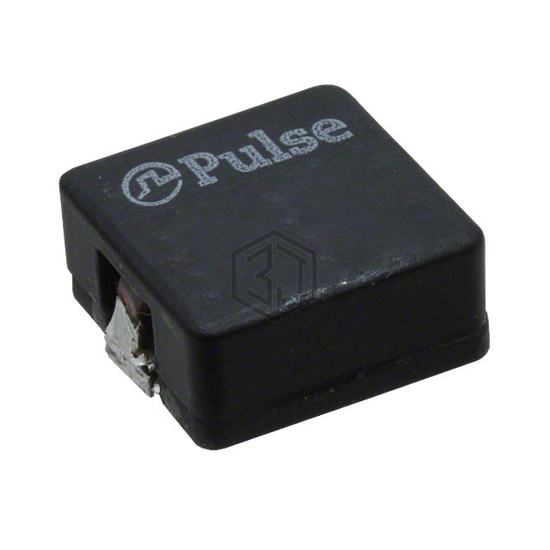

FIXED IND 450NH 45A 0.8 MOHM SMD
PG0077.401NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 450NH 45A 0.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C, package / case Nonstandard, current rating (amps) 45 A.
In Stock: 1,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 450 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 45 A |
| Current - Saturation (Isat) | 48A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 95°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.551" L x 0.512" W (14.00mm x 13.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
