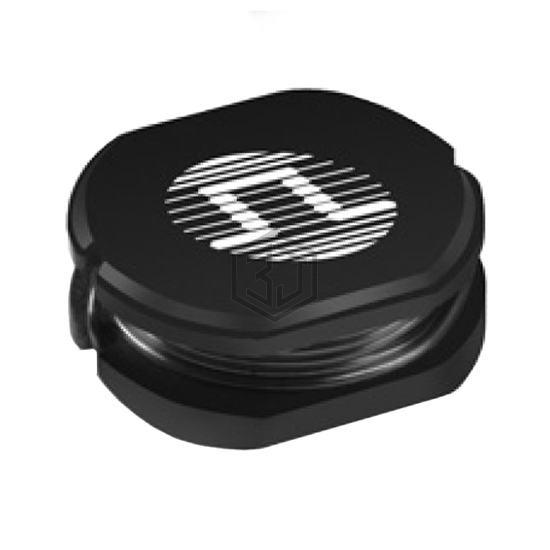

FIXED IND 68UH 930MA 233MOHM SMD
PF0581.683NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 68UH 930MA 233MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 930 mA.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 930 mA |
| Current - Saturation (Isat) | 930mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 233mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.406" L x 0.367" W (10.32mm x 9.32mm) |
| Height - Seated (Max) | 0.174" (4.42mm) |
Submit your RFQ for PF0581.683NL and get a quote within 24 hours.
