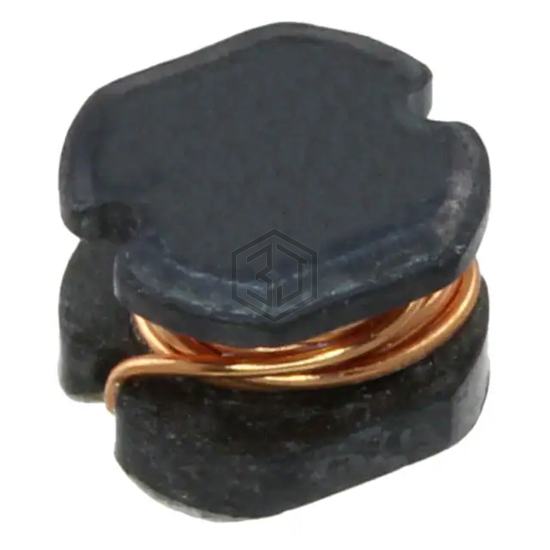

FIXED IND 56UH 460MA 700MOHM SMD
PF0580.563NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 56UH 460MA 700MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 460 mA.
In Stock: 5,370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 56 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 460 mA |
| Current - Saturation (Isat) | 460mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.165" W (4.70mm x 4.20mm) |
| Height - Seated (Max) | 0.137" (3.48mm) |
Submit your RFQ for PF0580.563NL and get a quote within 24 hours.
