FIXED IND 330UH 520MA 1.09OHM SM

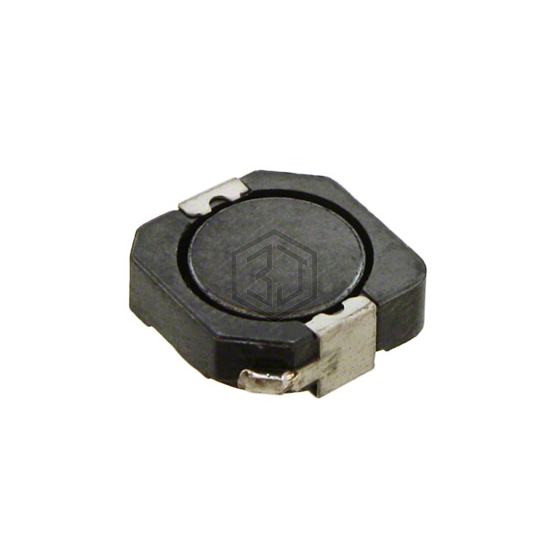

PF0560.334NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 330UH 520MA 1.09OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 520 mA.
In Stock: 2,360
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 700mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.09Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 3.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for PF0560.334NLT and get a quote within 24 hours.
