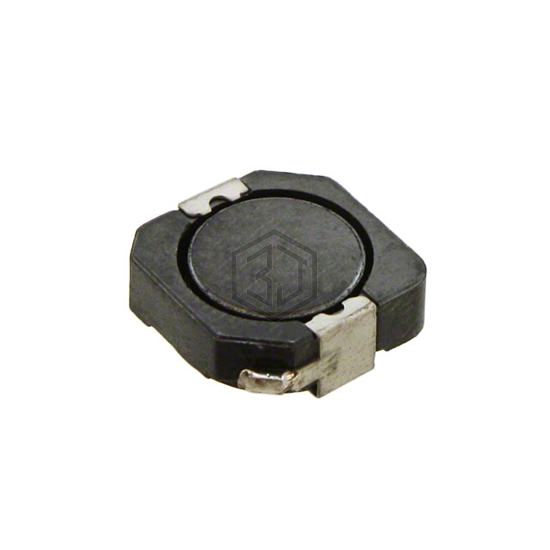

FIXED IND 10UH 3.8A 35 MOHM SMD
PF0560.103NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 10UH 3.8A 35 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.8 A.
In Stock: 2,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 4.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 35mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 25MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for PF0560.103NLT and get a quote within 24 hours.
