FIXED IND 35.6UH 5A 23 MOHM TH

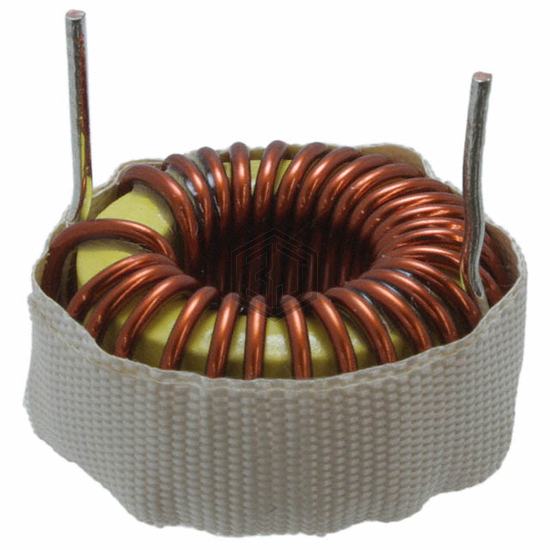

PE-92414NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 35.6UH 5A 23 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Horizontal (Open), current rating (amps) 5 A.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 35.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 20 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.050" Dia (26.67mm) |
| Height - Seated (Max) | 0.550" (13.97mm) |
Submit your RFQ for PE-92414NL and get a quote within 24 hours.
