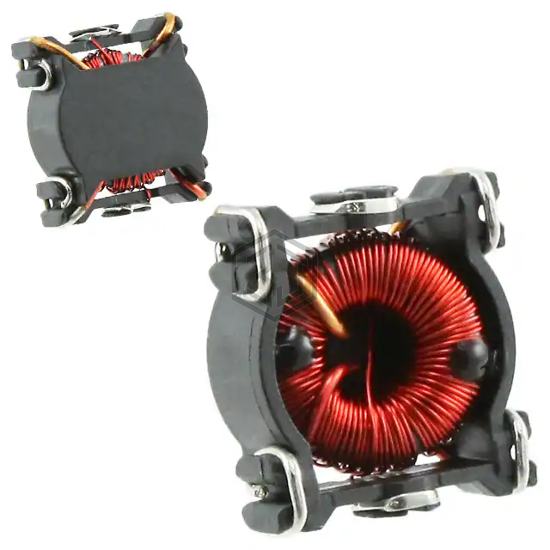

CURR SENSE XFMR 1:1:100 15A SMD
PE-68280 is a Current Sense Transformers manufactured by Pulse Electronics Power. CURR SENSE XFMR 1:1:100 15A SMD. Key specifications: mounting type Surface Mount, current rating (amps) 15 A, size / dimension 0.495" L x 0.490" W (12.57mm x 12.45mm), frequency range 50kHz ~ 500kHz.
In Stock: 7,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 500kHz |
| Type | Invasive |
| Current Rating (Amps) | 15 A |
| Inductance | 14.8 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1:100 |
| Current Ratio | - |
| DC Resistance (DCR) | 1.15mOhm Primary, 930mOhm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.495" L x 0.490" W (12.57mm x 12.45mm) |
| Height - Seated (Max) | 0.280" (7.11mm) |
| Termination Style | - |
Submit your RFQ for PE-68280 and get a quote within 24 hours.
