FIXED IND 77UH 2.7A 90 MOHM TH

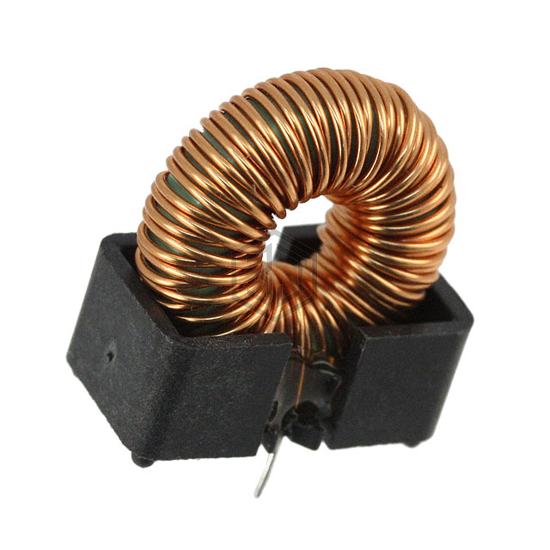

PE-54038NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 77UH 2.7A 90 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Vertical (Open), current rating (amps) 2.7 A.
In Stock: 187
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 77 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 90mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 20 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.830" L x 0.450" W (21.09mm x 11.43mm) |
| Height - Seated (Max) | 0.950" (24.13mm) |
Submit your RFQ for PE-54038NL and get a quote within 24 hours.
