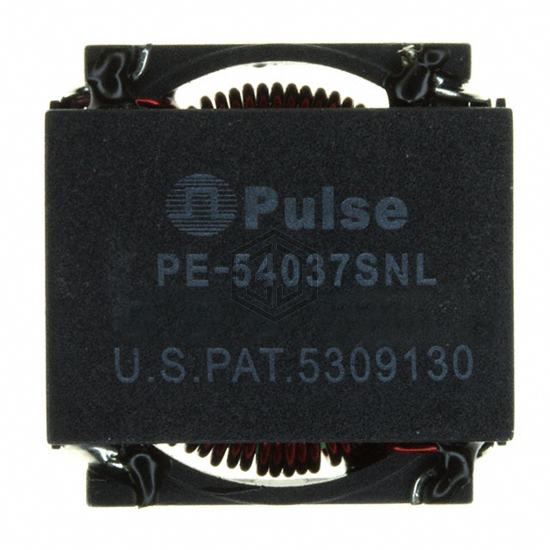

FIXED IND 114UH 2.22A 100MOHM SM
PE-54037SNL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 114UH 2.22A 100MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 2.22 A.
In Stock: 529
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 114 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.22 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.940" L x 0.940" W (23.88mm x 23.88mm) |
| Height - Seated (Max) | 0.400" (10.16mm) |
Submit your RFQ for PE-54037SNL and get a quote within 24 hours.
