FIXED IND 112UH 1.26A 300MOHM SM

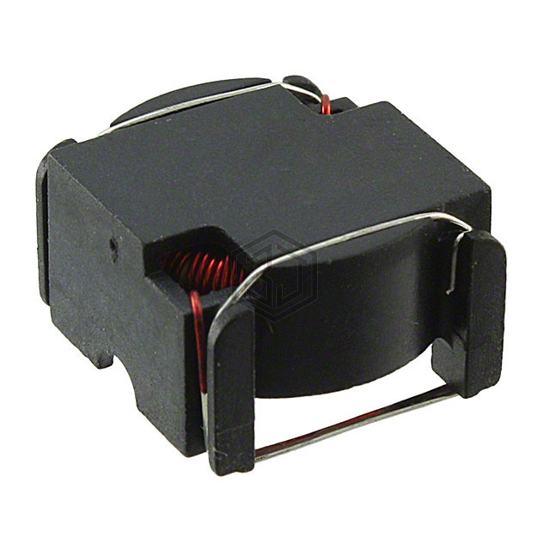

PE-53829SNLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 112UH 1.26A 300MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 1.26 A.
In Stock: 1,170
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 112 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.26 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 300mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.620" L x 0.600" W (15.75mm x 15.24mm) |
| Height - Seated (Max) | 0.390" (9.91mm) |
