FIXED IND 78UH 820MA 300 MOHM TH

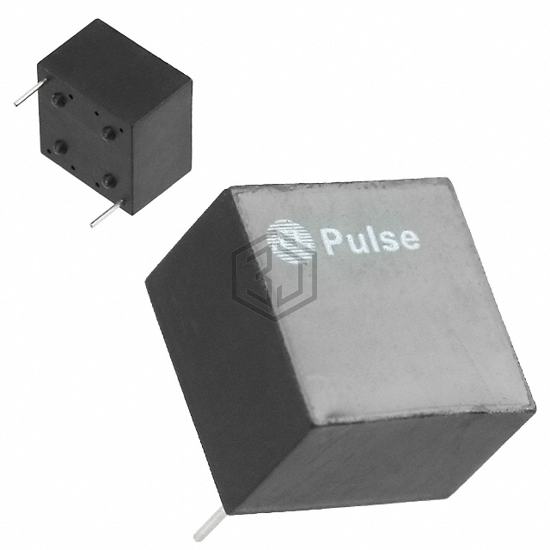

PE-53821NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 78UH 820MA 300 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Vertical - Corner Terminals, current rating (amps) 820 mA.
In Stock: 1,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 78 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 820 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 300mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.495" L x 0.495" W (12.57mm x 12.57mm) |
| Height - Seated (Max) | 0.375" (9.52mm) |
Submit your RFQ for PE-53821NL and get a quote within 24 hours.
